Scaffmart Premium 5' X 6'-4" Set w/ 7' Bracing

Scaffmart Premium 5′ X 6′-4″ Set w/ 7′ Bracing

Product Code: SMP0003
Manufacturer: NIL

This set is well suited for the homeowner who wants to build a tower over 20′ and is okay with a heavier frame. The benefit to using this set over using the 5′ X 5′ set is cost. A 20′ tower can be built with three sets of 6’4″ tall vs four sets of 5′ tall, saving around $100 in material cost. The disadvantage to using this frame is the weight. The 6’4″ tall set weighs approximately 10 lb heavier than the 5′ tall set. Our 5′ X 6’4″ set meets and/or exceeds all OSHA regulations.The frames have three ladder rungs and uses our premium c-locks. To maximize the life and longevity of our scaffold sets we apply a high visibility yellow powder-coating by the highly rated AkzoNobel.

Add to Quote

Product Description

This set is well suited for the homeowner who wants to build a tower over 20′ and is okay with a heavier frame. The benefit to using this set over using the 5′ X 5′ set is cost. A 20′ tower can be built with three sets of 6’4″ tall vs four sets of 5′ tall, saving around $100 in material cost. The disadvantage to using this frame is the weight. The 6’4″ tall set weighs approximately 10 lb heavier than the 5′ tall set. Our 5′ X 6’4″ set meets and/or exceeds all OSHA regulations.The frames have three ladder rungs and uses our premium c-locks. To maximize the life and longevity of our scaffold sets we apply a high visibility yellow powder-coating by the highly rated AkzoNobel.

Included:

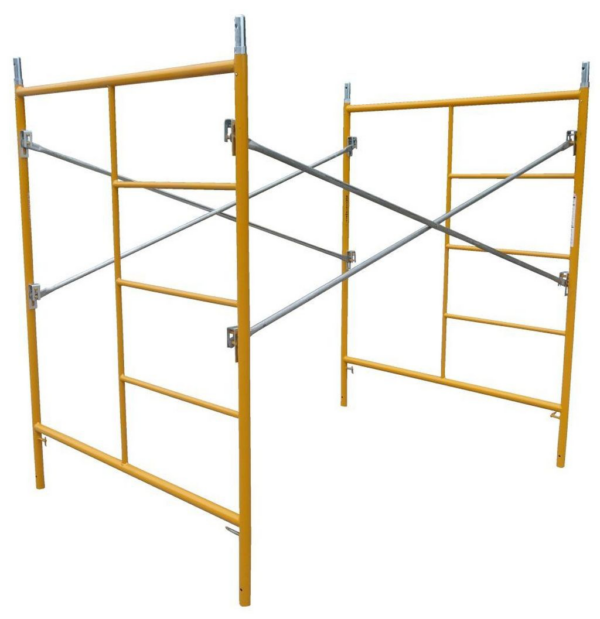

  • (2) 5′ X 6′-4″ Scaffolding Frames
  • (2) 7′ Scaffolding Cross Braces
  • (4) Galvanized Stack Pins
  • (4) Zinc Plated Spring Rivets

Specifications:

  • Weight 118.80 lbs
  • Frame Tube OD 1.675″
  • Frame Tube Wall Thickness 2.3mm
  • Frame Dimensions 5′ W X 6′-4″ H
  • Brace Lock Spacing 27.75″
  • Distance Between Frames 7′
  • Stack Pin Length 10″
  • Stack Pin OD 1.375″
